CAT 2000 PROFESSIONAL PACKAGE

The CAT 2000 Professional Package (Hayward Commercial Aquatics / CAT Controllers) is a complete commercial automated water chemistry management package engineered for commercial pools, aquatic centers, therapy spas, and municipal water facilities. It provides micro-processor-driven dual-channel monitoring and proportional control for pH and sanitization (ORP/Chlorine/Bromine), factory pre-mounted on an acrylic backboard with a machined acrylic flow cell, sensors, and installation plumbing hardware for rapid bypass loop integration.

System Overview & Package Components

The Professional Package integrates all monitoring and sampling equipment onto a single pre-plumbed, pre-wired backboard to simplify commercial equipment room installation:

• CAT 2000 Controller Unit: Microprocessor-based dual-parameter controller featuring bright, dual digital LED displays that continuously report real-time pH and ORP readings, feed status, and operational alarms.

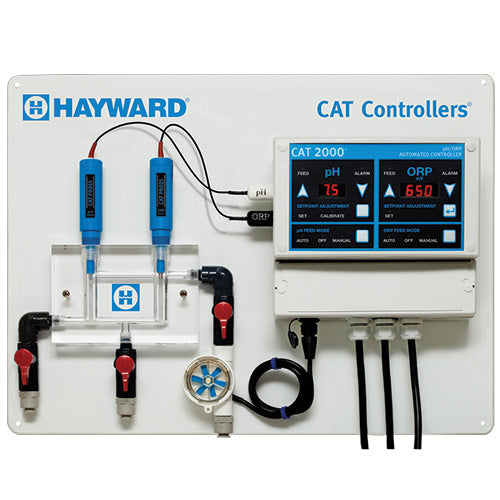

• Factory Pre-Mounted Acrylic Backboard: Heavy-gauge, chemical-resistant backboard pre-drilled for wall mounting, housing the controller, sample stream assembly, and safety equipment in a clean footprint.

• Machined Acrylic Flow Cell: Clear, solid acrylic manifold housing the sensors. It integrates an adjustable flow control valve, a visual rotary sample stream flow indicator, a sample stream shutoff valve, and a water sampling petcock for manual photometer testing.

• Integrated Safety Flow Switch: Magnetic reed flow switch built into the sample line that automatically disengages chemical feed outputs if sample water flow drops below safe operating velocity, preventing gas pocketing and chemical overfeeding.

• Professional-Grade Sensors: Heavy-duty, glass-body pH electrode and platinum-band ORP electrode with sealed reference chambers and protective BNC boot caps.

• Installation Plumbing Kit: Includes bypass sample tubing, inlet/outlet shut-off valves, threaded compression fittings, and saddle/injection line connectors.

Technical Specifications

• Monitoring & Control Ranges:

  • pH Range: 7.0 to 8.4 (resolution: 0.1 pH)

  • ORP Range: 200 to 999 mV (resolution: 1 mV)

• Control Modes: Continuous, Proportional (pulse-frequency modulation to prevent chemical overshooting), and Manual override feed modes.

• Outputs / Relays:

  • Two dry-contact or powered chemical feed relays (dedicated pH and ORP/sanitizer), typically rated for 115V AC / 230V AC up to 5A resistive load per relay.

  • Compatible with liquid diaphragm metering pumps, peristaltic pumps, erosion tablet feeders with solenoid valves, saltwater chlorine generators, and CO₂ gas injection systems.

• Safety & Alarm Features:

  • Programmable chemical feed timeout limits (disengages feed if setpoint is not met within an allotted time window).

  • High/low parameter visual and audible safety alarms.

  • Sample stream flow loss interlock.

• Enclosure: NEMA 4X / IP66 weather-resistant, UV-stabilized thermoplastic housing with a clear, lockable hinged faceplate cover.

• Electrical Requirements: Universal 115V / 230V AC, 50/60 Hz, 0.5A input (field selectable via internal wiring terminal block).

Operational & Mechanical Footprint

• Backboard Dimensions: Approximately 24" H × 16" W × 8" D (approx. 61.0 cm × 40.6 cm × 20.3 cm).

• Sample Stream Plumbing: 3/8" OD polyethylene tubing with 1/4" NPT or 1/2" NPT pipe taps for system bypass installation across the primary filtration pump/filter loop.

• Operating Pressure Limit: Maximum sample cell operating pressure of 50 PSI (approx. 3.45 bar).

• Operating Ambient Temperature: 32°F to 120°F (0°C to 49°C).
