Coates Electric Pool Heater, 30kw 600V Three Phase, Salt Water Application

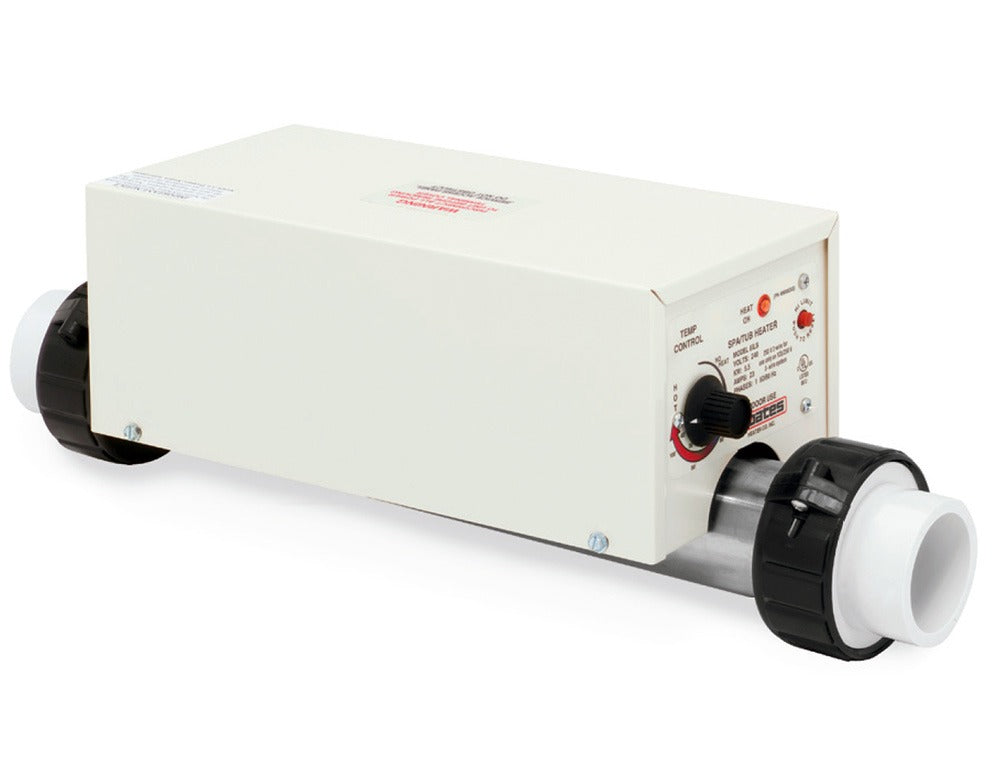

The Coates 30kW 600V Three-Phase Electric Pool & Spa Heater for Salt Water Applications (Model 36030CES / 36030CPHS — featuring the "S" saltwater/corrosion-resistant package) is a heavy-duty inline immersion heater designed for commercial hydrotherapy pools, resort aquatic centers, swim schools, and athletic training tanks operating with electrolytic salt chlorine generation systems (typically 2,500 to 4,500+ ppm TDS/NaCl) on a standard Canadian 600V 3-phase/3-wire or 4-wire electrical distribution network.

Operating 30kW across a 600V 3-phase supply limits the continuous load to 28.9 Amps per phase (compared to 83.3 Amps on 208V 3-phase and 125.0 Amps on 240V single-phase). This allows significant thermal output on compact branch infrastructure while the factory saltwater package prevents accelerated galvanic degradation and chloride stress corrosion cracking in high-salinity water.

Electrical & Heating Performance

• Model Designation: Coates 36030CES / 36030CPHS series (360 designates 3-Phase 600V; suffix designates Saltwater/Titanium package).

• Heating Capacity: 30 kW (30,000 Watts).

• Thermal Output: 102,364 BTU/hr ($30\text{ kW} \times 3,412.142\text{ BTU/kWh}$).

• Operating Voltage: 600V AC, Three-Phase (3Ø), 3-pole / 3-wire plus ground (or 4-wire Wye), 60 Hz.

• Full Load Amperage (FLA): 28.9 Amps

  $$\text{FLA} = \frac{30,000\text{ W}}{600\text{ V} \times \sqrt{3}} = \frac{30,000}{1,039.23} \approx 28.87\text{ A} \rightarrow 28.9\text{ A}$$

• Overcurrent Protection (Breaker Sizing): Requires a dedicated 3-pole 40-Amp circuit breaker (600V-rated) conforming to CEC/NEC 125% continuous-duty loading standards ($28.87\text{ A} \times 1.25 = 36.08\text{ A}$ minimum branch rating, standardizing on a 40A 600V 3-pole breaker).

• Conductor Sizing: Minimum #8 AWG copper conductor (rated 600V, 75°C/90°C THHN/THWN/RW90; adjusted for ambient derating and raceway distance).

Salt Water Construction & Metallurgy Upgrades

• Titanium / Incoloy 825 Sheathed Elements: Standard immersion elements are replaced with Titanium or high-molybdenum/nickel Incoloy 825 sheathing to prevent chloride-induced stress corrosion cracking (SCC), scale accumulation, and localized pitting from dissolved sodium chloride.

• Passivated / Barrier-Coated Pressure Vessel: Extended cylindrical pressure chamber fabricated from heavy-gauge 316L stainless steel or carbon steel lined with a specialized baked phenolic epoxy/fluoropolymer protective barrier, isolating the tank substrate from saline electrolytic degradation.

• Sacrificial Cathodic Protection: Equipped with an accessible sacrificial zinc or magnesium anode plug port to absorb galvanic action and mitigate stray current erosion in the salt plumbing loop.

• Corrosion-Inhibited Cabinet: Heavy-gauge NEMA 1 industrial painted enclosure finished with an anti-corrosion powder coating to prevent cabinet degradation in high-humidity, salt-vapor mechanical rooms.

Construction & Safety Architecture

• Cabinet & Enclosure: NEMA 1 industrial painted steel cabinet with a removable front panel for terminal inspections, 600V-rated staged 3-pole magnetic contactor servicing, and field wire terminations.

• Internal Control Circuit: Factory-installed step-down control transformer (600V primary to 120V/24V secondary) powering the thermostatic control circuit and safety interlocks.

• Integrated Safety Controls:

  • Dual-dial adjustable thermostatic controller calibrated up to 104°F (40°C) for commercial spa compliance.

  • Manual-reset High-Limit safety cutout set to de-energize the magnetic contactor control circuit at 122°F (50°C).

  • Pressure/flow-interlock switch preventing heating element contactors from pulling in during low-flow, pump loss, or deadhead conditions.

Hydraulic & Plumbing Specifications

• Plumbing Connections: Standard 1-1/2" NPT female inlet and outlet ports (adapted via Schedule 80 CPVC unions into 2" or 2-1/2" headers).

• Equipment Sequencing in Salt Systems: Must always be installed upstream of the electrolytic chlorine generator cell (separated by an inline corrosion-resistant check valve) to prevent hyper-concentrated chlorine gas or acidic pockets from pooling inside the heater vessel during pump shutdowns.

• Flow Rate Parameters:

  • Minimum Flow Rate: 20 GPM (approx. 76 LPM) required to trip the safety flow switch and prevent localized thermal cavitation.

  • Maximum Flow Rate: 60 to 70 GPM (approx. 227 to 265 LPM); filtration loops operating at higher GPM mandate an external plumbed bypass manifold.

• Maximum Working Pressure: 60 PSI (approx. 4.14 bar).

Dimensions, Net Weight & Shipping Weight

• Unit Dimensions: Approximately 24.0" L × 12.0" W × 16.5" H (approx. 61.0 cm × 30.5 cm × 41.9 cm).

• Net Unit Weight: Approximately 68 to 76 lbs (approx. 30.8 to 34.5 kg).

• Packaged Shipping Dimensions: Approximately 26" L × 15" W × 19" H.

• Packaged Shipping Weight: Approximately 82 to 92 lbs (approx. 37.2 to 41.7 kg) in heavy-duty reinforced corrugated carton packaging with dense molded foam protection.

Estimated Temperature Rise Rates

(Calculation: $\text{Rise (°F/hr)} = \frac{102,364\text{ BTU/hr}}{\text{Gallons} \times 8.34\text{ lbs/gal}}$, baseline heat-up rate assuming covered vessel without ambient radiation losses.)
