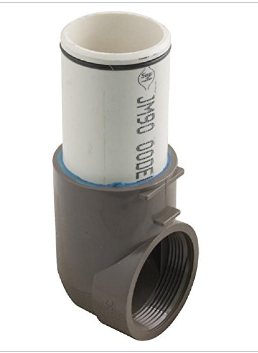

Hayward OUTLET ELBOW ASSY W/O-RING

The Hayward Outlet Elbow Assembly with O-Ring is a specialized plumbing component designed to direct the flow of clarified water from the internal filter manifold back toward the pool return line. Precision-molded from a high-impact, chemical-resistant thermoplastic, this assembly features a 90-degree curved geometry that reduces hydraulic turbulence and friction loss as water exits the pressurized tank. Its primary mechanical function is to provide a secure, watertight bridge between the filter’s internal grid or cartridge cluster and the external bulkhead fitting, ensuring that the filtered water remains isolated from the dirty water inside the tank. The included high-grade elastomeric O-ring is critical for maintaining a hermetic seal at the connection point, preventing pressure loss and ensuring the system maintains a consistent prime. This assembly is engineered to withstand the constant vibrations and thermal expansion common in high-flow pool systems, particularly those utilizing salt-chlorine generators. For shipping and logistical purposes, the estimated weight of the Hayward Outlet Elbow Assembly with O-Ring is approximately 1.1 pounds in its retail protective packaging, while the actual dry weight of the molded elbow and its O-ring is roughly 0.78 pounds.
