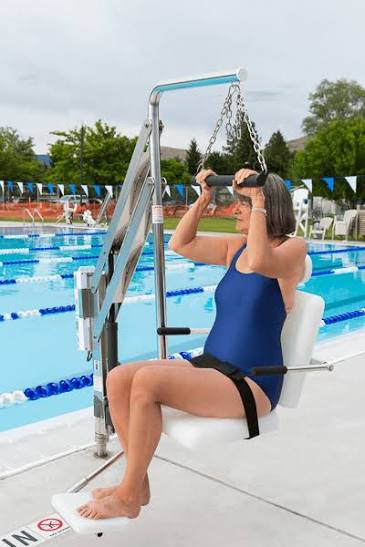

HORIZON BP350 DELUXE LONG REACH

The Spectrum Aquatics Horizon BP 350 Deluxe Long Reach (Part #153170 / #153170-00) is the fully outfitted, extended-boom variant within the stationary Horizon commercial pool lift family. It combines the extreme clearance and setback capabilities of the Long Reach platform with the full factory ergonomic, comfort, and transport accessory suite designated by the "Deluxe" package.

It is primarily deployed at high-end resort, municipal, and therapy facilities that feature wide gutter troughs, raised parapet walls, or decorative coping stones and require turnkey accessibility readiness right out of the crate.

Key Technical Specifications

• Lifting Capacity: 350 lbs (158.8 kg) dynamic operating load rating under continuous commercial duty cycles.

• Extended Setback & Reach: Accommodates deck-to-water horizontal setbacks from 18" up to 44", clearing rim-flow grating, recessed trench drains, and raised coping curbs up to 12" to 14" in height.

• Submerged Draft Depth: Submerges up to 18" below deck water level, exceeding the ADA Title III minimum mandate of 16" below the water line for unassisted, seated swimmer transfers.

• Power Architecture: Low-voltage 24V DC battery-powered drive delivering 90+ continuous cycles per full charge.

• Motion & Articulation: Powered vertical linear actuator paired with continuous 360° powered horizontal rotation.

• Structural Metallurgy: Heavy-wall 304L stainless steel, electropolished and treated with factory-applied Spectra Shield® to resist pitting and surface staining (available with optional 316L upgrade for harsh indoor chloramine atmospheres or saline pools).

• Operator Controls: Watertight, submersible handheld push-button pendant wand on a heavy-duty coiled cord (or dual watertight remotes depending on the production run), requiring under 5 lbs of button operating force for single-handed ADA compliance.

Deluxe Package Outfitting

Unlike the Standard Long Reach model (which requires piecemeal outfitting), the Deluxe configuration integrates key comfort, positioning, and handling equipment as standard:

• Full Ergonomic Seating: Includes a contoured, padded headrest and dual padded flip-up armrests to stabilize swimmers during rotation.

• Enhanced Leg Rest: Integrated swing-away, height-adjustable footrest to accommodate diverse swimmer heights and ease deck transfers.

• Safety Restraints: Factory-equipped with a heavy-duty, adjustable ADA-compliant seat safety belt.

• Included Handling & Protection: Typically bundled with an OEM tailored, heavy-duty marine vinyl protective cover and transport caddy compatibility for off-season storage or maintenance maneuvering.

Anchor Infrastructure

• Deck Anchor Socket: Interfaces with a 2.375" (2-3/8" OD) commercial anchor socket (Part #28520-00 / #75521 series, 6" embedment depth) equipped with an integral copper equipotential bonding lug.

• Legacy Adapters: Can mount into existing 1.90" sockets using the Spectrum 1.9" ID to 2.375" OD Anchor Adapter sleeve (Part #28550-00), provided deck setback geometry is verified.

• Surface Mount Compatibility: Fully compatible with Spectrum’s heavy-duty stainless surface mount baseplate assemblies where core-drilling into post-tensioned slabs is prohibited.
