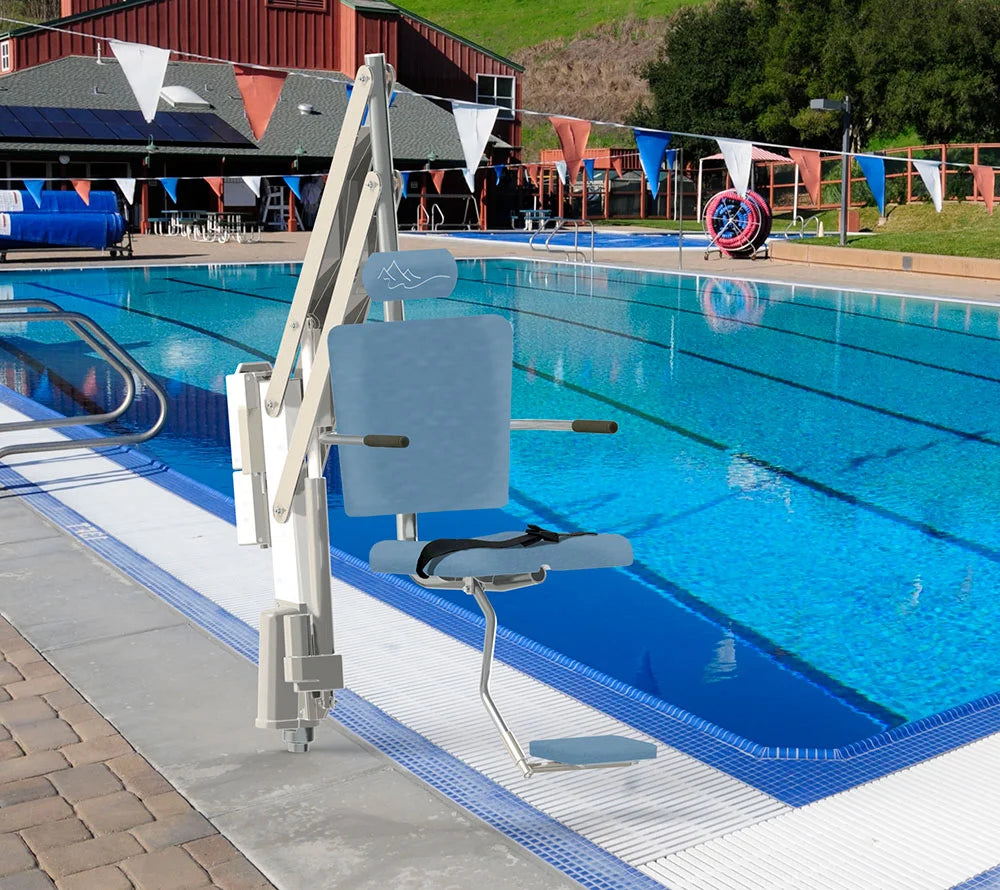

HORIZON BP450

The Spectrum Aquatics Horizon BP 450 (Part #153180 / #153180-00) is the high-capacity, heavy-duty commercial pool lift within the stationary Horizon family. It bridges the gap between the standard 350-pound Horizon/Motion Trek models and the bariatric 500-pound Traveler platform, providing an elevated 450-pound working load capacity on a rigid, stationary mast design.

It is engineered specifically for municipal aquatic complexes, resort pools, and physical therapy facilities requiring a robust, stationary bariatric lift capable of handling standard to wide deck setbacks without resorting to a larger mobile-style frame.

Key Technical Specifications

• Lifting Capacity: 450 lbs (204.1 kg) dynamic operating load rating under continuous commercial service.

• Deck Setback Range: Accommodates standard-to-medium deck setbacks from 6" up to 33", easily clearing perimeter scum gutters, roll-out troughs, and standard pool coping.

• Vertical Travel & Draft: Provides an underwater draft depth submerging the seat up to 18" below deck water level, exceeding the ADA Title III 16-inch minimum requirement for unassisted seated transfers.

• Power Architecture: Low-voltage 24V DC battery-powered Linak drive system delivering 90+ continuous cycles on a full charge; includes an off-deck wall-mounted charging cradle (Part #153605) and AC/DC power supply.

• Motion & Articulation: Powered vertical elevation driven by a reinforced heavy-thrust linear actuator, paired with continuous 360° powered horizontal rotation.

• Structural Metallurgy: Heavy-gauge 304L stainless steel, electropolished and coated with proprietary Spectra Shield® for corrosion resistance (available with a factory 316L stainless steel upgrade for indoor natatoriums or saline pools).

• Operator Controls: Watertight, submersible 4-button handheld pendant wand on a heavy-duty coiled cord (or dual watertight wireless remotes depending on facility configuration), compliant with single-handed ADA operation requiring under 5 lbs of button operating force.

• Standard Ergonomics & Safety: Outfitted with flip-up padded armrests, swing-away/adjustable footrest, padded headrest, and an ADA-compliant seat safety belt.

Anchor & Mounting Infrastructure

• Deck Anchor Socket: Designed to install into a standard 2.375" (2-3/8" OD) commercial anchor socket (Part #28520-00 / #75521 series, 6" embedment depth) fitted with an NEC-compliant copper equipotential bonding lug.

• Surface Mount Option: Fully compatible with Spectrum’s heavy-duty stainless surface mount baseplate assemblies for decks where post-tensioned cables prevent core drilling.

• Retrofit Compatibility: Can interface with existing 1.90" sockets utilizing the Spectrum Anchor Adapter (Part #28550-00), provided deck setback geometry is recalculated.
