MOTION TREK BP 400-NO ANCHOR

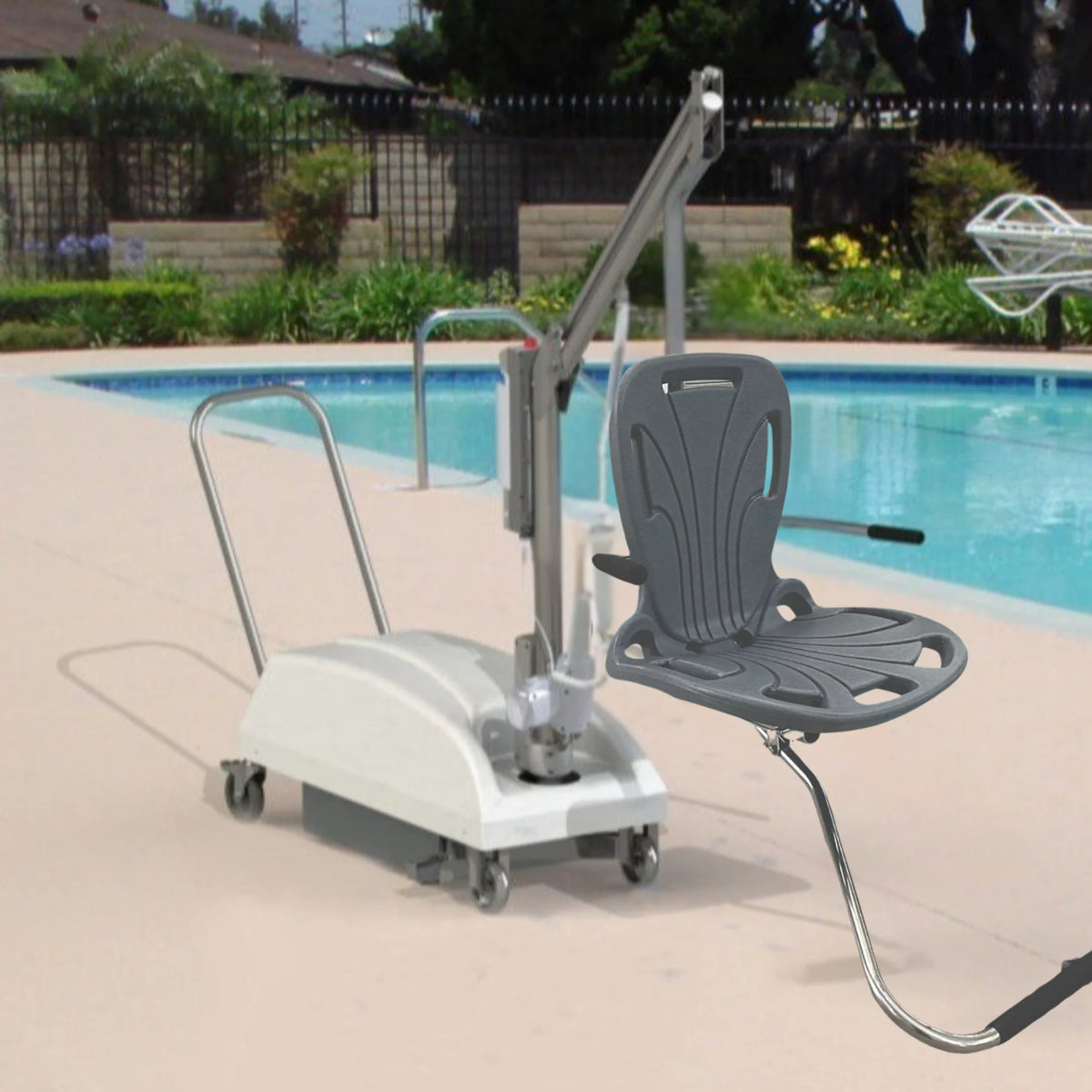

The Spectrum Aquatics Motion Trek BP 400 - No Anchor (Part #154100-NA) is an ADA-compliant commercial access pool lift featuring an upgraded 400-pound payload threshold, supplied without deck mounting hardware for facilities with existing sockets or custom mounting needs.

Functional Overview

Fabricated from heavy-gauge passivated 304L/316L stainless steel finished with an electrostatically applied, chemical- and UV-resistant powder coat, the BP 400 is engineered to withstand continuous commercial use in chlorinated and saltwater environments. Powered by a 24-volt rechargeable battery system (Linak-driven), it is operated via a submersible handheld push-button pendant wand that gives the user full control of smooth vertical travel and 360-degree continuous powered rotation.

The "No Anchor" configuration is intended for:

• Direct Replacements: Retrofitting directly into an existing, structurally sound anchor socket that is already installed and bonded to the deck.

• Specialized Foundations: Accommodating non-standard deck substrates (such as paver decks, wood deck through-bolt systems, or extended setback requirements) where a specialized mounting kit must be ordered separately.

• Standard Seating Features: Outfitted with a molded rigid plastic seat, flip-up armrests, an adjustable swing-away footrest, and a safety lap belt to facilitate safe, independent wheelchair transfers.
