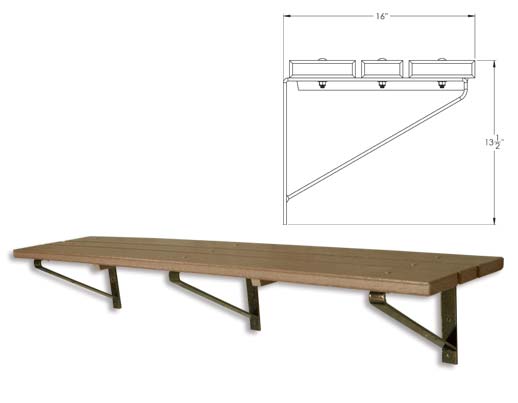

NORDESCO Wall Mount Bench 9ft - Grey

The Nordesco 9-Foot Wall-Mount Bench (Grey) is an ultra-long commercial cantilevered seating platform built to order for high-occupancy aquatic facilities, such as stadium grandstand perimeters, collegiate team locker rooms, and extended natatorium transition corridors.

Functional Overview & Materials

Engineered to span extensive architectural walls in continuous linear runs while preserving an entirely open floor plane below:

• Heavy-Duty Polymer Slats: Formed from high-density, UV-stabilized virgin polypropylene slats in neutral grey. Non-porous and chemically inert, the material withstands constant chloramine vapor, chlorinated water splash-out, harsh sanitizing detergents, and body oils without cracking, peeling, or harboring mold.

• Continuous Drainage Channeling: Spaced longitudinal slats direct water runoff immediately to the deck surface, preventing water pooling and accelerating evaporation for barefoot and swimsuit-clad patrons.

• Six-Point Cantilever Substructure: Supported by six heavy-gauge, electropolished stainless steel (Type 304 or 316) triangular cantilever brackets. This dense bracket spacing eliminates midpoint deflection and securely handles dynamic live-load shifts across the 108-inch span.

• Unrestricted Floor Hygiene: The elevated profile eliminates floor-contact pedestals entirely, allowing commercial auto-scrubbers, wide floor squeegees, and pressure sprayers to clean wall-to-wall without creating debris or bacterial traps.

Technical Specifications

• Nominal Length: 108 inches (9 feet / approx. 274.3 cm).

• Bench Depth / Seat Width: Approximately 12 to 14 inches (approx. 30.5 to 35.5 cm) projection from the finished wall surface.

• Load Rating: Rated for 1,350 to 1,550 pounds (612 to 703 kg) uniformly distributed commercial working load when anchored to solid poured concrete, fully grouted CMU masonry, or continuous structural steel backing.

• Bracket Count: 6 heavy-duty stainless steel cantilever brackets featuring pre-drilled flange holes sized for 3/8" or 1/2" commercial structural masonry anchors or through-bolts.
