Pentair 12" x 1" Manifold

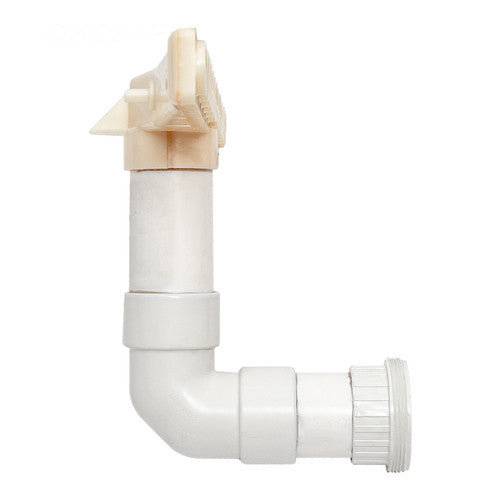

The Pentair Sta-Rite System 3 D.E. Collector Manifold (part number 24801-0101Z or 24801-0101, as shown in image_734d94.png) is a specialized internal fluid-management plumbing component engineered exclusively for the internal grid network of the Pentair Sta-Rite System 3 SD-Series Diatomaceous Earth (D.E.) pool and spa filtration systems (specifically the high-capacity model S8D110). Injection-molded from heavy-walled, high-impact, and chemically inert structural polymers, this top collector manifold sits at the apex of the internal element core. Its primary operational role is to align, stabilize, and securely lock the large concentric D.E. grid elements into a perfectly rigid positioning framework.

By holding the filtration elements tightly in place, the manifold establishes a uniform structural foundation that guides dirty incoming water correctly across the D.E. media. It ensures a balanced hydraulic distribution flow through the fabric pleats while acting as a vital mechanical shield preventing fine D.E. particles or debris from bypassing the filter core and returning to the pool. This robust architecture allows the system to easily handle high fluid velocities and sustain continuous internal hydraulic operating parameters up to 50 PSI without warping, cracking, or experiencing pressure-induced grid misalignment under sudden pump vibration surges. Designed for a long life completely submerged in a dynamic, highly treated chemical environment, its durable framework completely resists degradation from concentrated pool sanitizers like chlorine, bromine, and winterizing acid flushes. Due to its wide-diameter, specialized multi-port grid seating profile, this individual top collection manifold carries a net product and shipping weight of approximately 1.75 to 2.00 pounds.
