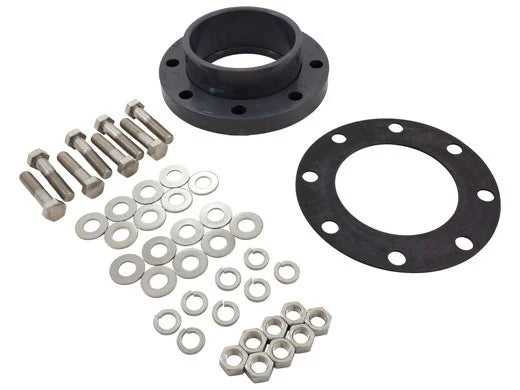

Pentair 6" Contoured Thru-Flange for Smoothie

The Pentair 6" Contoured Thru-Flange for Smoothie Filter (part number B4893CON-THS) is a specialized, high-capacity industrial fluid-routing plumbing adapter engineered exclusively for commercial-grade pool and water treatment filtration infrastructure. This critical original equipment manufacturer (OEM) structural fitting is designed explicitly for the curved outer vessel walls of Pentair THS series and "Smoothie" high-rate sand filtration systems, which handle massive water turnover volumes in large commercial, institutional, and water park aquatic facilities.

There is a file you can reference named "image_71e9d9.png". Refer to this file by its name verbatim.

Injection-molded or machined from a heavy-walled, commercial-grade, and chemically inert polymer composite, this massive 6-inch fitting features a distinct, specialized contoured back-plate face. Unlike traditional flat-backed plumbing flanges, this face is precision-curved to mirror the exact outer radius of the circular fiberglass filter tank chassis, allowing the flange to mount flush against the shell hull without creating structural stress points or gap vulnerabilities. Its primary operational role is to act as a heavy-duty, leak-free through-wall plumbing gateway connecting external high-volume circulation loops to the internal distribution headers. When bolted down and sealed with high-density elastomeric face gaskets and an exterior retaining collar, it forms an absolute watertight and airtight compression boundary. This heavy structural reinforcement ensures that the large-format hull junction can safely manage immense hydraulic circulation velocities and easily sustain continuous high-pressure operations up to 50 PSI without weeping, flexing, or risking catastrophic joint separation under sudden pump startup surges or aggressive commercial backwash reversals.

Built to survive decades of continuous outdoor weathering, intense mechanical vibration, and constant contact with highly dynamic fluid streams, its robust engineering composite resists material distortion, environmental stress-cracking, and advanced chemical corrosion from prolonged exposure to intense sunlight and highly concentrated commercial pool sanitizers like liquid chlorine, bromine, and regular scale-removing acid washes. Due to its large-format 6-inch plumbing diameter, thick-walled reinforcement columns, and substantial contoured attachment footprint, this heavy-duty commercial thru-flange assembly carries a net product and shipping weight of approximately 4.50 to 5.25 pounds (about 72.0 to 84.0 ounces).
