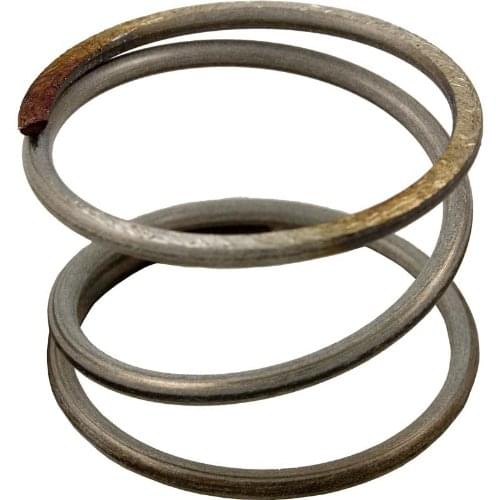

Pentair Compression Spring

The Pentair Compression Spring (most notably integrated into the flagship Spring Barrel Nut Assembly like Part #190003 or #181010) is a critical safety and mechanical regulation component designed for the metal tension-control clamp bands sealing Pentair’s high-pressure pool and spa filters, such as the Clean & Clear Plus, FNS Plus D.E., and Quad D.E. series.

Functional Overview

Fabricated from ultra-high-tensile, corrosion-resistant stainless steel, this heavy-gauge spring rides directly over the clamp's central T-bolt. Its primary mechanical function is to act as a visual and physical tension regulation system when tightening the split-ring metal clamp that locks the upper and lower filter tank domes together. As a technician cranks down on the locking barrel nut, the compression spring forces the clamp loops together, bridging the physical gap between the tank halves and uniformly flattening the internal main tank O-ring.

Crucially, the spring behaves as an automatic torque-limiting safety baseline. Operators are instructed to tighten the hardware until the coils of the spring compress entirely together, touching "coil-to-coil" (or leaving a tiny nominal gap depending on the specific manual instructions). This configuration provides the precise physical compression needed to contain massive hydraulic vessel pressure without stripping the metal threads or warping the fiberglass tank flange.

Weight and Shipping Profile

Because it is a short, incredibly dense, thick-gauge steel spring, it carries significant physical heft for its small footprint:

• Actual Component Weight: Approximately 0.45 to 0.60 pounds (roughly 7.2 to 9.6 ounces) for the individual spring.

• Packaged Shipping Weight: Typically scales at 1.0 to 1.5 pounds when purchased as part of the complete replacement kit (which bundles the heavy compression spring, thick stainless washers, and a brass/steel barrel nut) enclosed in a standard padded parts box or heavy bubble mailer.
