Pentair Quad D.E Diverter Assembly

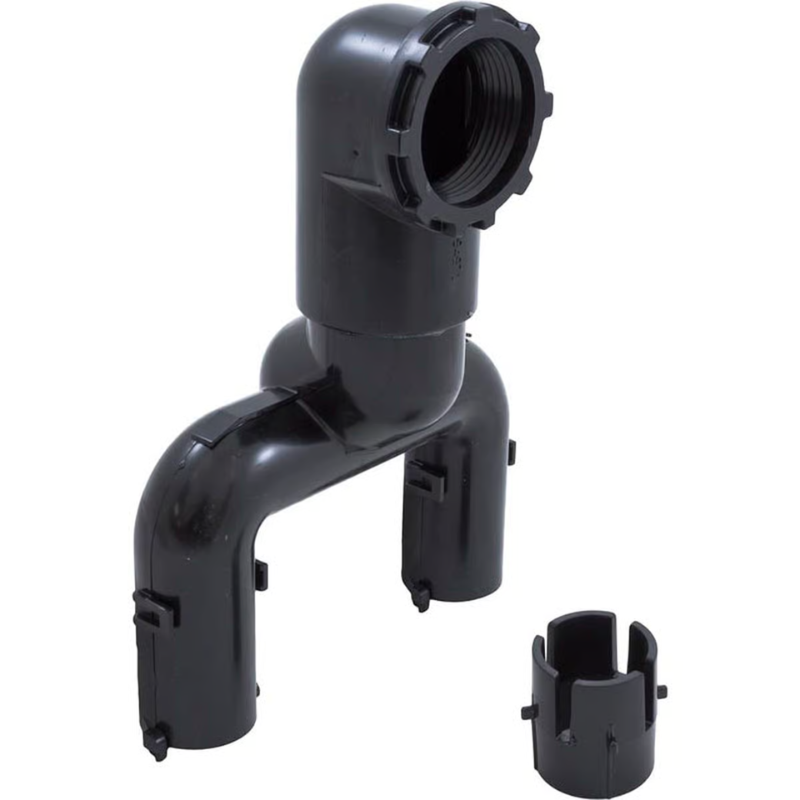

The Pentair Quad D.E. Diverter Assembly Retrofit Kit (Part #196024S) is a specialized internal fluid-management component engineered specifically for Pentair Quad Diatomaceous Earth (D.E.) pool and spa filtration systems.

This component replaces the filter's original legacy intake baffle assembly on the lower plumbing inlet side. Injection-molded from a dense, chemically inert black thermoplastic composite, the diverter's primary fluid-dynamics purpose is to intercept and forcibly redirect incoming, high-velocity pool water straight downward toward the absolute bottom basin of the filter tank.

By pushing the incoming water to the lowest point of the vessel, it prevents the water from carving uneven structural pathways directly into the filtration media. This downward orientation yields several system benefits:

• Uniform D.E. Distribution: It stops the pre-coat powder from forming localized clumping or settling in heavy mounds at the base, forcing an even, homogenous coating of D.E. dust across all four internal cartridge media elements.

• Minimized Pressure Drops: Preventing media clogging helps keep operational system pressure stable over extended filtration cycles.

• Optimized Turbulence: It curtails aggressive interior turbulence that could otherwise strip the delicate D.E. cake matrix off the cartridge fabric during unexpected pump-surge intervals.

Weight Profile

Because it is designed as a streamlined, low-profile internal plastic fitting, its weight footprint remains very compact:

• Actual Product Weight: Approximately 0.85 to 0.90 pounds (roughly 13.6 to 14.4 ounces).

• Packaged Shipping Weight: Typically scales at 0.95 to 1.20 pounds depending on the standard small component boxing or protective transit padding used to secure the rigid plastic flange edges during shipping.
