SR Smith, aXs2/Splash!, Anchor Kit, LiftLock2 Anchor

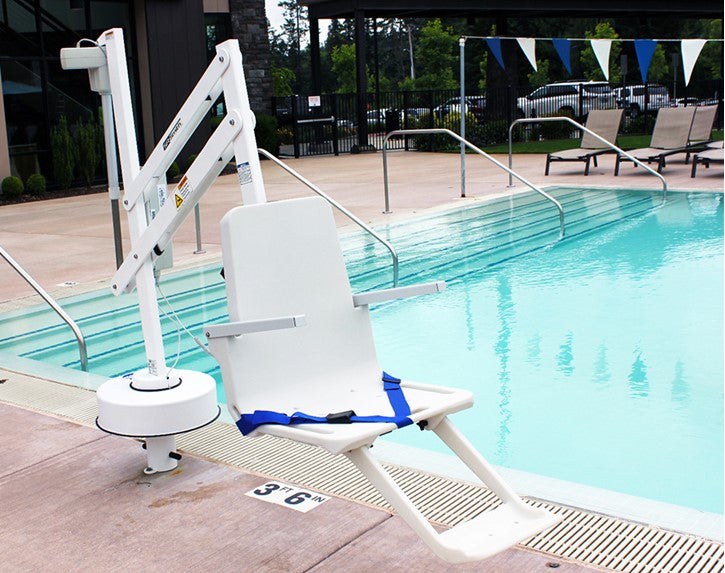

The S.R. Smith aXs2 / Splash! LiftLock2 Anchor Kit (Part #300-6700L / #300-6800L series) is an engineered deck-mounting socket system designed specifically to secure the aXs2 and Splash! series commercial pool lifts while providing positive mechanical keying and locking capability.

Functional Overview

Fabricated from heavy-duty cast bronze or 304/316 marine-grade stainless steel, this anchor is designed to handle the substantial dynamic torque and cantilever forces generated by 300- to 400-pound capacity commercial lifts. It can be installed into existing concrete decks via core-drilling with structural two-part epoxy or embedded into freshly poured concrete footings.

The distinguishing feature of the LiftLock2 system is its internal alignment keyway mechanism. When the lift mast is seated into the socket, the internal locking profile indexes the mast into the exact required ADA setback orientation and physically locks it against rotation or vertical lift-out until manually released. This satisfies jurisdictional mandates requiring commercial lifts to be firmly fixed and keyed during operational periods. The kit includes an integrated copper bonding lug and hardware to meet NEC equipotential bonding standards, as well as a flush-mount protective cap to seal the socket level with the deck when the lift is removed.
