SR Smith, MultiLift 2, Anchor Kit, Existing Decks

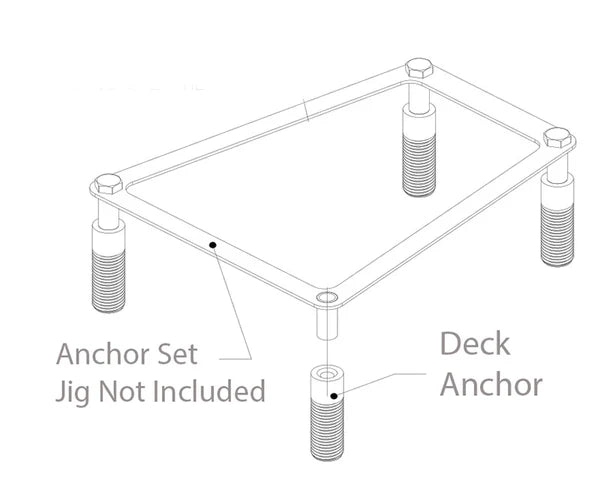

The S.R. Smith multiLift 2 Existing Deck Anchor Kit (Part #580-9000 / #300-6700A series) is the OEM retrofit foundation system engineered specifically for core-drill installation of the multiLift 2 commercial pool lift into existing cured concrete decks.

Functional Overview

Fabricated from corrosion-resistant bronze or marine-grade 304/316 stainless steel, this anchor kit provides the structural socket necessary to handle the dynamic cantilever forces and 350-pound rated payload of the multiLift 2 platform.

The system is designed to be installed by core-drilling a cylindrical hole directly into an existing concrete slab (requiring a minimum 4-inch slab thickness with standard footing embedment) and securing the sleeve flush with two-part structural epoxy adhesive. The internal socket is machined to precisely accept the multiLift 2 mast post, ensuring rigid stability during rotation and vertical cycles. It includes an integrated copper bonding lug and hardware to comply with NEC equipotential bonding standards. A threaded flush protective cap is included to close the socket when the lift is removed for seasonal storage, eliminating trip hazards and shielding the socket interior from debris and pool water.
